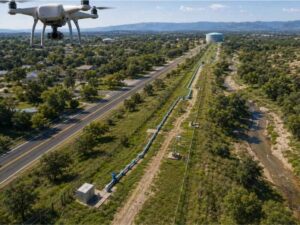

Planning a new water line, or checking on an old one, means knowing exactly what sits above ground along the way. Aerial survey drones can fly the whole route and capture roads, fences, and other surface features in one clear picture. This gives engineers a solid starting point before they dig into the details of where the pipe will actually go.

This article covers five ways drone surveys support water line planning.

Building a Surface Map Along the Route

A water line often runs for a long stretch, crossing roads, yards, and open land. Before choosing where to build it, a drone survey can capture what’s on the surface along the whole path.

This includes roads, buildings, fences, and drainage features near the route. It’s important to be clear here: drones map what they can see from above. They don’t see the buried pipe itself. What they do give planners is a clear, current picture of the ground conditions surrounding where the line might go, which is a useful starting point before any digging happens.

Mapping Hydrants, Valves, and Water Features

Water systems have plenty of parts that stick up above ground, even if the pipes themselves stay buried. Hydrants, valve boxes, tanks, and pump structures are all visible from the air.

A drone survey can record where these features sit and place them on the same map as everything else along the route. This gives engineers a clearer reference when they look at the bigger picture of the water network. Seeing all these pieces together, instead of scattered across old records, makes reviewing the system much easier.

Checking Road and Drainage Crossings

Almost every water line route runs into a crossing at some point. Roads, washes, drainage channels, and paved areas all show up along the way, and each one adds a bit more planning work.

Drone survey data helps teams spot these crossings before choosing a final route. Knowing where the line will need to cross a road or a drainage channel early on lets the design team plan for it properly, instead of running into surprises once construction starts. This step focuses only on finding where those crossings sit, not on the drainage design itself.

Comparing Different Route Options

Large properties often have more than one possible path for a new water line. Engineers can compare these options using the same aerial base map, which makes it much easier to weigh the choices side by side.

This comparison usually looks at route length, existing development, ground obstacles, and where the line needs to connect. One route might be shorter but run through more developed land. Another might avoid obstacles but add extra distance. Looking at both options on the same map helps engineers pick the alignment that makes the most sense.

Combining Aerial Data With Underground Information

It’s worth repeating that drone surveys show the surface, not what’s buried below it. Aerial mapping alone can’t tell you exactly where a water pipe sits underground.

What aerial data does well is provide the surface context around the route. Combined with utility records, field locating, and other proper underground-location methods, this surface information rounds out the full picture engineers need. Treating the aerial survey as one part of a bigger process, rather than the whole answer, keeps expectations realistic and the planning accurate.

Frequently Asked Questions

Can aerial survey drones locate underground water lines?

No, not directly. Drones map visible surface conditions. Finding buried water lines needs supporting records, field locating, or other proper underground methods.

What water system features can drone surveys map?

Visible features like hydrants, valve boxes, tanks, structures, roads, and crossings tied to the water system can all be mapped from the air.

Can drone mapping help compare different water line routes?

Yes. A current aerial base map lets engineers compare possible routes and spot surface obstacles before settling on a final path.

How can aerial surveys help with water line crossings?

Aerial data shows the roads, drainage channels, washes, and developed areas around a route, which helps engineers plan for extra design work at those spots.

When should aerial survey data be collected for a water line project?

It’s most useful early, during route planning, since it gives engineers a reliable picture of the surface before detailed design and field layout begin.
