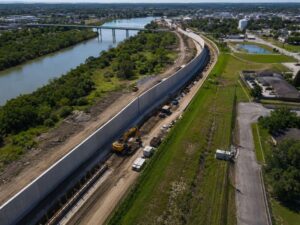

Aerial Surveyor Support for Floodwall Planning
A floodwall has to follow the shape of the land. It can’t fight against it. Before anyone pours concrete, an aerial surveyor maps the ground along the planned route. This map shows every dip and rise. Those small changes can affect how tall the wall needs to be. They can also affect where the foundation needs to sit. Skip this step, and a wall might end up too short in one spot. It might even get built where it can’t actually go. For a project meant to hold back water, that kind of gap is not something you want to find out about later. Here’s how this early mapping work shapes a floodwall, from the first drawing to the finished structure.Mapping the Ground Along the Wall’s Path
A floodwall is only as good as the ground it sits on. An aerial surveyor builds a full elevation model along the whole planned route. This isn’t just a few sample points here and there. It’s a steady, connected picture of the land.
These small changes matter a lot. A slight dip can mean the wall needs more height right there. A patch of low, soft ground might mean the foundation needs to go deeper. And where the wall ties into higher natural ground at each end, the exact elevation decides whether that connection actually works. Getting this data early lets engineers design around the real land. They don’t have to guess.
Finding the Low Spots Water Could Sneak Around
A floodwall only works if water can’t get around it. This is where a lot of planning goes wrong. Teams sometimes focus only on the wall’s centerline. They forget to check the land on either side of it.
Aerial elevation data shows the dips, gaps, and low ground near the wall route. Say there’s a low spot fifty feet past the planned end of the wall. Water will find it during a flood. Surveyors catch these spots before construction starts. They don’t wait for the first storm to prove the design wrong. This is why floodwall planning has to look at the whole area around it, not just the line drawn on the map.
Checking How Much Room the Project Actually Has
A floodwall needs more space than just its own footprint. Crews need room for the foundation. They need a maintenance path alongside the wall. They also need a temporary work area during construction, plus space for heavy equipment to move around.
Aerial mapping shows exactly how much room is available for all of this. Nearby buildings, roads, fences, and drainage ditches can squeeze that space down fast. So can property lines. A route that looks wide open on a basic site plan might turn out to be tight once you factor in a fence line or a drainage channel running close to the edge. Catching this early saves a redesign later, when changes cost far more time and money.
Spotting Conflicts With Roads and Other Structures
Before anyone finalizes a floodwall design, it helps to know what’s already in the way. Aerial survey data can show roads, culverts, drainage channels, and other visible structures. It can also spot utility corridors that cross or sit close to the proposed route.
This isn’t the full picture, though. Aerial surveys capture what’s visible from above. Buried pipes and underground cables usually still need a field check on the ground. What aerial data does well is flag the obvious conflicts early. That way, engineers know where to focus that closer ground check instead of guessing where problems might turn up.
Tracking Progress With Repeat Aerial Surveys
Floodwall construction doesn’t happen in one clean step. Excavation comes first. Then foundation work. Then the wall itself, followed by grading and the connections at each end. Each stage changes the site in a way that’s worth recording.
Repeat aerial surveys give engineers and project managers a clear record. They can compare the finished work to the approved design at every stage. If the wall placement drifts even slightly from the plan, a fresh survey will show it. This catches the problem before the next phase builds on top of the mistake. For a structure that has to work correctly during a real flood, this kind of ongoing check carries real weight.
Frequently Asked Questions
What aerial survey data is needed before designing a floodwall?
Planners usually need a detailed elevation model along the full proposed route. They also need mapping of nearby structures, roads, and drainage features that could affect the design.
Can aerial surveying identify low areas around a proposed floodwall?
Yes. Aerial elevation data can show dips and gaps in the land nearby. Water could travel around the wall through these spots if the design doesn’t account for them.
Does an aerial survey show enough detail for floodwall alignment planning?
Aerial surveys give strong detail for the overall route and the land around it. Some projects still need ground checks for underground features or tight foundation work.
Can aerial survey data reveal conflicts with roads and utilities?
Yes, for anything visible from above. Buried utilities usually still need a separate field check, since aerial surveys can’t see underground.
How often should aerial surveys be updated during floodwall construction?
This depends on how fast the project moves. Many teams schedule new flights at key points, such as after excavation, after foundation work, and after the wall itself is placed.
