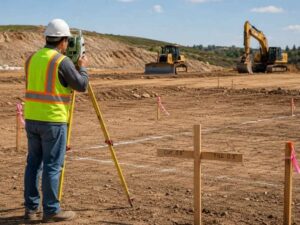

Grading can move thousands of cubic yards of soil, making accurate layout one of the most important steps before earthwork begins. A construction surveyor performs layout checks to confirm that grading limits, control points, elevations, and other key features match the approved plans before heavy equipment starts work. Verifying these details early helps identify discrepancies while they are still easier and less expensive to correct. Once grading begins, even small layout errors can lead to additional earthwork, project delays, and unnecessary costs.

What Layout Checks Before Grading Mean

Layout checks are the surveyor’s way of confirming the site is staked and ready before earthwork begins. The surveyor compares the approved grading plan to the real ground and marks where every cut, fill and slope should go. This turns a flat set of drawings into stakes a machine operator can follow. Without it, the crew is guessing at depths and locations, and guesses on a grading job get expensive fast.

The check also confirms the site matches what the plan assumed. Existing ground levels can differ from the survey the designer used, especially if time has passed or dirt has moved. A lot can change between the day a site is surveyed and the day grading starts. Catching that gap now saves a redesign later. The surveyor’s job at this stage is to make sure the plan and the dirt agree before anyone digs.

Confirming Control Points and Benchmarks

Every layout starts from control points, and the surveyor checks these first. Control points are fixed marks with known positions that the whole site measures from. Benchmarks are similar marks with a known height. If these are off, every stake placed from them is off too. That’s why they come before anything else.

The surveyor verifies that the control points are still in place and haven’t been knocked or moved since they were set. Construction sites are rough on markers. Equipment, weather and other crews can disturb them. A quick check confirms the marks are solid, or resets them if they’ve shifted. This step protects the accuracy of everything that follows, because the whole grade depends on it. A control point that moved two inches can throw off an entire pad.

Checking Stakes Against the Grading Plan

Once control is confirmed, the surveyor checks the grading stakes themselves. Each stake tells the operator how much to cut or fill at that spot. The surveyor confirms the stakes sit in the right places and show the right depths against the plan. A stake with a wrong number can send a machine two feet too deep, and that mistake is hard to walk back.

The surveyor also looks at spacing and coverage. Stakes need to be close enough that the operator can grade between them with confidence. Key features like building pads, road edges and drainage lines need extra attention, since these are the spots where a small error causes the biggest problems. Clear, correct stakes are what let a crew grade fast without second-guessing every pass. Good staking keeps the machines working instead of waiting.

Verifying Drainage and Elevations Early

Drainage is where grading mistakes hurt most, so the surveyor checks it before dirt moves. Water has to flow off the site the way the plan intends. The surveyor confirms the staked elevations will send water toward the right outlets and away from buildings. A pad set even slightly too low can collect water for years, and fixing that after the fact means tearing up finished work.

Slopes get the same review. The surveyor checks that the planned grades are steep enough to drain but gentle enough to be safe and usable. Flat spots that trap water and slopes that are too steep both show up at this stage. Fixing an elevation on paper costs nothing. Fixing it after the site is graded costs real money, and often costs schedule too.

Handing the Layout Off to the Crew

The checks only pay off if the crew can read them, so the surveyor makes the layout clear on the ground. Stakes get marked with plain cut and fill numbers the operator understands at a glance. Color codes and labels tell the crew what each stake controls, whether it’s a pad, a road or a drainage line. A layout the operator has to guess at is a layout that leads to mistakes.

The surveyor also stays available as grading moves along. Stakes get pulled or buried as dirt shifts, and the crew often needs them reset partway through. A surveyor who checks back in keeps the grade on track from start to finish. This ongoing support is what turns a good initial layout into a site that grades correctly all the way to final elevation.

Frequently Asked Questions

What does a construction surveyor check before grading?

The surveyor confirms the control points and benchmarks, checks the grading stakes against the plan and verifies that elevations and drainage will work. These checks make sure the crew cuts and fills in the right places from the start, before any expensive earthwork begins.

Why do layout checks matter before grading?

Because grading moves huge amounts of dirt. A mistake in the layout gets multiplied across the whole site and is expensive to undo. Checking the layout first keeps the earthwork accurate and avoids costly rework that can set a project back weeks.

What are control points and benchmarks?

Control points are fixed marks with known positions that the site measures from. Benchmarks are marks with a known height. Every stake and grade depends on them, so the surveyor confirms they’re accurate before work begins.

Can grading start without a survey check?

It can, but it’s risky. Skipping the check invites wrong depths, bad drainage and pads in the wrong spot. The cost of those errors is almost always higher than the cost of the check, which is why most careful builders won’t skip it.

How long do pre-grading layout checks take?

It depends on the size and complexity of the site. A small lot may take part of a day, while a large site with many pads and roads takes longer. The time spent is small next to the cost of regrading a site built on a bad layout.
