What a Topographic Survey Reveals Before Landscape Design
A landscape plan that looks great on paper can fall apart fast on the actual site. Plants get placed in spots that collect water. Retaining walls go in without accounting for the real slope. Drainage ends up going the wrong direction. Most of those problems trace back to one thing: the designer didn’t have accurate ground data before drawing the plan. A topographic survey gives developers the exact elevation and surface data needed to design from real conditions instead of guesses.
What a Topographic Survey Actually Shows
A topographic survey records the physical features of a site at measured points across the ground.

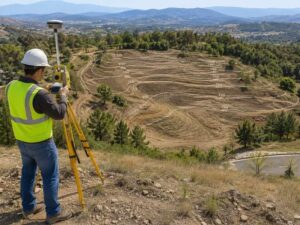

The surveyor takes spot elevations at regular intervals and at changes in grade. Those readings get plotted into contour lines on a scaled drawing. Each contour line connects points at the same elevation. The drawing shows the shape of the land in a way a photograph or aerial image simply can’t.
The survey also records:
- Existing trees and shrubs with trunk size and canopy spread
- Structures, walls, fences and hardscape on the site
- Drainage features like swales, channels and low points
- Utility lines and surface boxes
- Slopes, berms and sharp grade changes
That information becomes the base layer the landscape designer works from. Without it, every decision about grading, planting zones and drainage is a guess.
Why Desert Valley Sites Need Close Attention to Grade
Desert valley floor lots aren’t always as flat as they look.
Parcels can have small grade changes that send water in unexpected directions. Caliche layers near the surface in much of the Pahrump area also affect drainage. Water doesn’t soak through caliche the way it does through sandy soil. It runs off instead.
A landscape design that ignores this ends up with irrigation water and stormwater pooling against structures or running onto neighboring lots. Neither outcome works on a developed site.
The topographic survey shows the designer exactly where water will go when it hits the ground. That changes where plants go, where hardscape edges sit and whether any regrading is needed before planting starts.
How Survey Data Shapes the Planting Plan
Plants in the Mojave Desert have specific water and drainage needs. Placing them without knowing the grade causes problems.
Desert plants like creosote, desert willow and native grasses do poorly in spots that collect water. Turf and irrigated areas need enough slope to drain between waterings without runoff moving too fast. Getting that balance right requires knowing the actual grade at each planting zone.
The topographic survey lets the designer:
- Find low spots that will collect irrigation runoff
- Confirm that slopes around structures drain away from foundations
- Spot flat areas where water may sit after rain or irrigation
- Plan grading changes before plants go in rather than after
Regrading after planting is expensive and disruptive. The topographic survey is what makes it possible to get grading right from the start.
Hardscape and Drainage Planning on Uneven Ground
Patios, walkways, driveways and retaining walls all depend on accurate grade data.
A patio poured without knowing the surrounding grades can drain toward the house. A walkway designed on paper may need more cut than expected once the crew gets on site. A retaining wall that looks simple in a plan can turn into a major structure once the real elevation change is measured.
The topographic survey removes those surprises. The designer sees real grades before any design decisions are made. Wall heights, patio slopes and walkway grades all get calculated from verified data.
Small elevation changes across a large parcel add up fast. A site that drops six inches over two hundred feet may not look significant on an aerial view, but that grade controls where every drop of water goes after rain or an irrigation cycle.
When to Order the Survey
The survey should be ordered before landscape design begins. That’s the only sequence that makes sense.
Ordering it after design starts means one of two things. Either the designer works from assumptions and revises later, which costs time. Or the design gets locked in without verified data and the field crew finds the problems during construction.
Both outcomes are avoidable. A topographic survey ordered at the start gives the whole project team verified ground data from day one. The designer works with real numbers. The contractor bids from a plan that reflects actual site conditions. The client doesn’t get change orders from field surprises that a survey would have caught early.
For developers running multiple sites in the Pahrump area, ordering the topographic survey alongside the boundary survey at the start of site work is the most efficient approach. The surveyor can often collect both datasets in a single site visit, which saves time and cost.
Frequently Asked Questions
How does a topographic survey differ from aerial imagery used in landscape design software?
Aerial imagery shows what a site looks like from above. It doesn’t record accurate ground elevations. Topographic survey data comes from measured points taken on the ground by a licensed surveyor. Design software using aerial imagery can show general site conditions but can’t replace field-measured elevation data for grading and drainage design.
Does a topographic survey show underground drainage on a landscape site?
The survey records surface features including visible drainage inlets, swales and channels. It doesn’t show underground pipes unless those features are visible at the surface. If underground drainage is a factor in the design, a separate utility locate or as-built review is needed alongside the topographic survey.
Can a topographic survey help identify caliche layers that affect drainage?
A topographic survey records surface and grade conditions only. Finding caliche layers requires soil investigation, not survey work. However, the survey can reveal surface drainage patterns that suggest poor percolation. That may prompt the designer to recommend a soil investigation before finishing the planting and irrigation plan.
How precise does a topographic survey need to be for a residential landscape design?
Most landscape designs work from survey data accurate to one-tenth of a foot in elevation. That level of precision is enough to calculate drainage slopes, size retaining walls and confirm grades around structures. Larger commercial projects may need higher precision based on the complexity of the grading plan.
Who uses the topographic survey data once the landscape design is complete?
The landscape designer uses it to build the planting and grading plan. The grading contractor uses it to calculate cut and fill volumes. The irrigation designer uses it to plan emitter placement and pressure zones. If the project needs a permit, the topographic data also supports drainage calculations submitted with the application.
